In this article, we’ll build on the latest annotations introduced by Spring in the latest release, making the implementation ready for distributed applications.

The full code of this implementation is available here.

Foresta Umbra - Gargano

Foresta Umbra - April 2024

1. Introduction: Spring 7.0’s New Resilience Features

Spring 7.0 introduced new resilience features for common tasks. One of these simplifies concurrency throttling in Spring with the new @ConcurrencyLimit annotation. This allows us to easily restrict the number of concurrent accesses to a specific resource:

@ConcurrencyLimit(10)
public String sendMessage(String message) {
	return this.openApiClient.chat(message);
}

In a vanilla Java implementation, the equivalent idea would be using a Semaphore to control access:

private final Semaphore semaphore = new Semaphore(10);

public String sendMessage(String message) {
    try {
        semaphore.acquire();
        return this.openApiClient.chat(message);
    }
    //...
}

2. The Problem: Pod-Scoped Concurrency Limits

When scaling horizontally, increasing the number of pods, this limit does not work anymore (with N pods = N x 10 concurrent requests). This can overload the downstream, increase costs, and risk cascading failures if not managed at the system level.

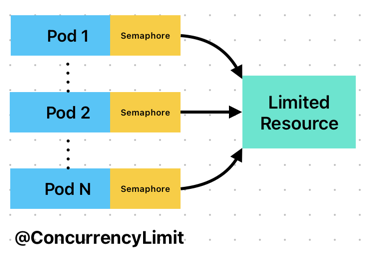

Concurrency Limit on Multiple Instances

Concurrency Limit on Multiple Instances

3. The Solution: Distributed Concurrency Control

Several architectural solutions are possible to solve this problem. In this case, we will build on Spring’s @ConcurrencyLimit, using a distributed semaphore that stores its internal state in Redis.

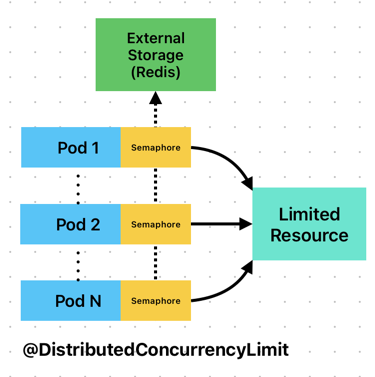

Distributed Concurrency Limit

Distributed Concurrency Limit

We’ll create a new annotation, @DistributedConcurrencyLimit, which enforces a maximum number of accesses to the external resource across multiple pods or even different applications, without requiring an additional load balancer or proxy layer in between.

@DistributedConcurrencyLimit(value = 10, identifier = "open-api-chat", timeout = 4000)
public String sendMessage(String message) {
	return this.openApiClient.chat(message);
}

4. Implementation Deep Dive

Dependencies & Why Redisson

We use Redisson because it provides ready-made distributed data structures, including RSemaphore, which handles the complexity of coordinating permits across multiple Redis clients.

dependencies {
    implementation 'org.springframework.boot:spring-boot-starter-aop'
    implementation 'org.redisson:redisson-spring-boot-starter:3.51.0'
}

The Annotation

Our @DistributedConcurrencyLimit annotation defines three key parameters:

@Target(ElementType.METHOD)
@Retention(RetentionPolicy.RUNTIME)
public @interface DistributedConcurrencyLimit {
    int value();                    // Max concurrent executions
    String identifier();            // Unique semaphore key
    long timeout() default 5000;    // Wait timeout in ms
}

Configuration

Enable the feature and configure Redis connection:

distributed-concurrency:
  enabled: true

spring:
  data:
    redis:
      host: localhost
      port: 6379

The AOP Interceptor

The core logic uses Spring AOP to intercept annotated methods:

@Component
@Aspect
@ConditionalOnProperty(name = "distributed-concurrency.enabled")
public class DistributedConcurrencyLimitInterceptor {

    private final RedissonClient redisson;
    private final Map<String, RSemaphore> semaphores = new ConcurrentHashMap<>();

    @Around("@annotation(concurrencyLimit)")
    public Object intercept(ProceedingJoinPoint joinPoint,
                           DistributedConcurrencyLimit concurrencyLimit) throws Throwable {

        String identifier = concurrencyLimit.identifier();
        RSemaphore semaphore = getOrCreateSemaphore(identifier, concurrencyLimit.value());

        boolean acquired = semaphore.tryAcquire(Duration.ofMillis(concurrencyLimit.timeout()));
        if (!acquired) {
            throw new ConcurrencyLimitExceededException(/*...*/);
        }

        try {
            return joinPoint.proceed();
        } finally {
            semaphore.release();
        }
    }

    private RSemaphore getOrCreateSemaphore(String identifier, int maxPermits) {
        return semaphores.computeIfAbsent(identifier, key -> {
            RSemaphore semaphore = redisson.getSemaphore(key);
            boolean wasSet = semaphore.trySetPermits(maxPermits);
            if (wasSet) {
                log.info("Initialized distributed semaphore '{}' with {} permits", key, maxPermits);
            } else {
                log.debug("Semaphore '{}' was already initialized by another instance", key);
            }
            return semaphore;
        });
    }
}

The getOrCreateSemaphore method implements a two-level caching strategy:

  1. Local cache: Uses ConcurrentHashMap.computeIfAbsent() to cache semaphore instances per JVM
  2. Distributed initialization: Uses trySetPermits() which atomically sets permits only if the semaphore doesn’t exist in Redis yet

This ensures thread-safety within each pod and safe initialization across multiple pods without race conditions.

5. Testing Distributed Concurrency Control

Testing distributed behavior requires simulating multiple application instances. We use Testcontainers to spin up a real Redis instance and create separate Spring contexts to mimic different pods.

For a deeper dive into Testcontainers with Spring Boot, check out this article.

Base Test Setup

@SpringBootTest(classes = DistributedConcurrencyApp.class)
@Testcontainers
public abstract class AbstractRedisIntegrationTest {

    @Container
    static GenericContainer<?> redis = new GenericContainer<>(DockerImageName.parse("redis:7.2-alpine"))
            .withExposedPorts(6379)
            .withReuse(true);

    @DynamicPropertySource
    static void configureProperties(DynamicPropertyRegistry registry) {
        registry.add("spring.data.redis.host", redis::getHost);
        registry.add("spring.data.redis.port", () -> redis.getMappedPort(6379));
        registry.add("distributed-concurrency.enabled", () -> "true");
    }
}

Testing Multiple Pods

The key insight is creating separate Spring application contexts to simulate different JVM instances:

@Test
void shouldLimitConcurrencyAcrossMultiplePods() {
    final int numberOfPods = 3;
    final int requestsPerPod = 2;

    // Create separate Spring contexts to simulate different pods
    List<ApplicationContext> podContexts = new ArrayList<>();
    List<ResourceService> podServices = new ArrayList<>();

    for (int i = 0; i < numberOfPods; i++) {
        AnnotationConfigApplicationContext podContext = new AnnotationConfigApplicationContext();
        podContext.register(DistributedConcurrencyApp.class);
        podContext.refresh();

        podServices.add(podContext.getBean(ResourceService.class));
        podContexts.add(podContext);
    }

    // Execute concurrent requests from all "pods"
    List<CompletableFuture<Void>> futures = new ArrayList<>();
    AtomicInteger successfulExecutions = new AtomicInteger(0);
    AtomicInteger failedExecutions = new AtomicInteger(0);

    for (int podIndex = 0; podIndex < numberOfPods; podIndex++) {
        final ResourceService podService = podServices.get(podIndex);

        for (int requestIndex = 0; requestIndex < requestsPerPod; requestIndex++) {
            futures.add(CompletableFuture.runAsync(() -> {
                try {
                    podService.useLimitedResource("request-" + System.nanoTime());
                    successfulExecutions.incrementAndGet();
                } catch (ConcurrencyLimitExceededException e) {
                    failedExecutions.incrementAndGet();
                }
            }));
        }
    }

    CompletableFuture.allOf(futures.toArray(new CompletableFuture[0])).join();

    // Verify that concurrency limits work across all pods
    assertTrue(failedExecutions.get() > 0, "Some requests should fail due to distributed limits");
    assertTrue(successfulExecutions.get() > 0, "Some requests should succeed");
}

This test validates that the distributed semaphore correctly limits concurrent access across multiple simulated application instances, proving our implementation works in a real distributed scenario.

6. Conclusion & Next Steps

This distributed concurrency control pattern shines when you need fine-grained resource protection across multiple application instances. However, consider alternative patterns when:

  • Load balancer limits suffice: If your infrastructure already handles rate limiting effectively
  • Single pod scenarios: Where local semaphores are adequate
  • Ultra-low latency requirements: The Redis round-trip adds some overhead per operation

As next steps, we could consider:

  • Dynamic permit adjustment: Allow runtime modification of semaphore limits
  • Metrics integration: Add Micrometer metrics for permit usage and wait times
  • Circuit breaker integration: Combine with resilience patterns for robust failure handling
  • Rate limiting: Extend the annotation to support time-based limits (requests per second)

The complete implementation with tests and examples is available on GitHub.

As always, thank you for reading!
